DIY Solar Panel Kit - 18W

The 18wp Solar Panel Kit is ideal for use in caravans where the time spent away from a mains hook up is no more than 4 days. Also useful for charging consumer appliances such as mobile phones, electric toothbrushes, digital cameras, powering electric gates*, garden pond pumps* or TV�s.

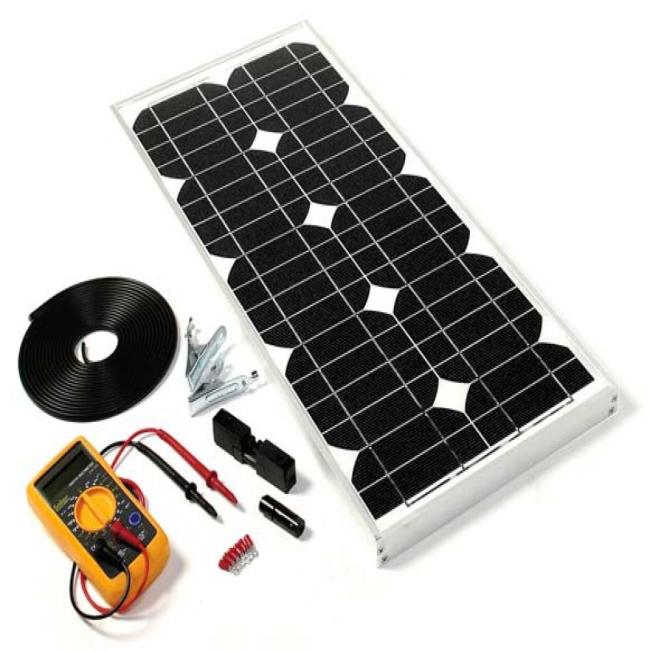

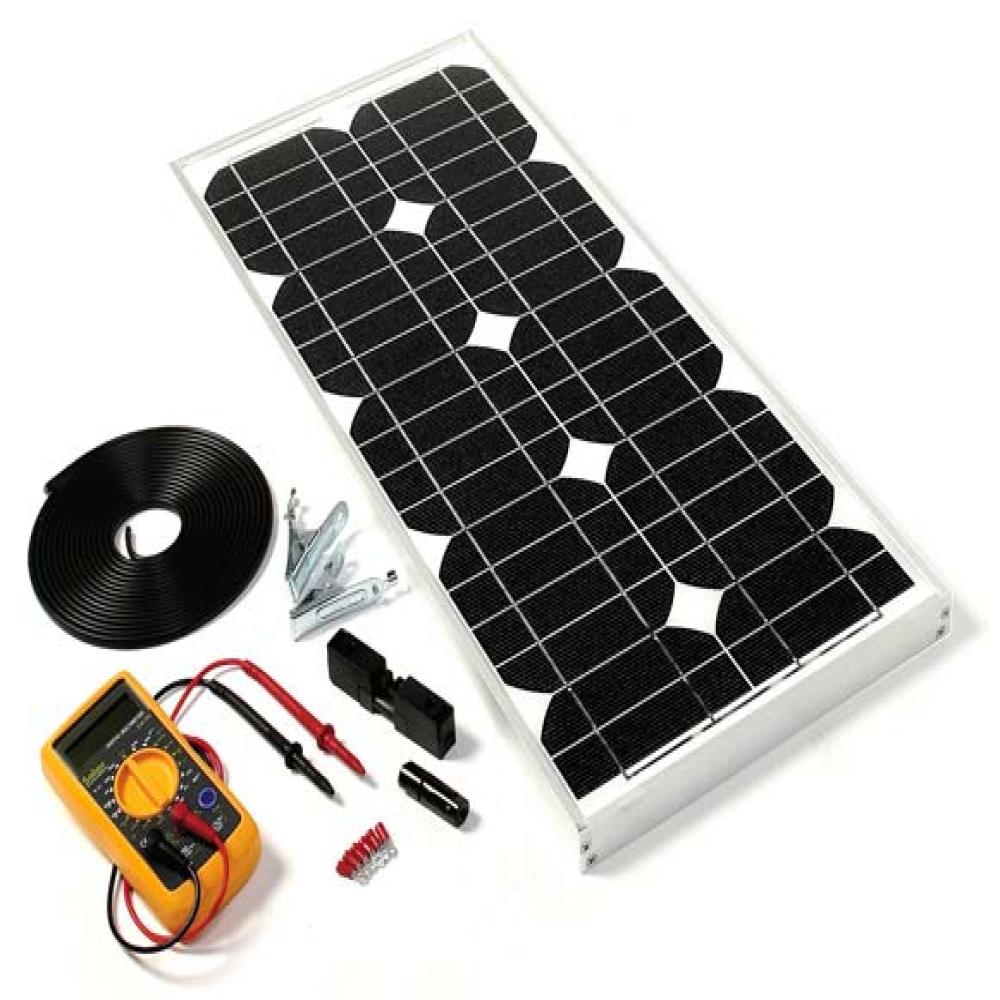

The 18 watt panel provides a continuous trickle feed maintaining and extending the life of any 12 volt battery. The 18 watt solar panel is supplied with all the necessary cable (5m), connectors, detailed installation instructions and a free digital test meter to enable the user to analyse the performance of both solar panel and battery.

The 4Ah (STS01204) Charge controller (sold separately) should be used with this kit to protect the battery from being overcharged and to prevent reverse current drain.

Technical Description:

High efficiency crystalline cell for �all weather� charging
Perfect for larger projects such as powering electric gates*, 12v TV�s, garden pumps / fountains* and use in caravans over a week�s period
Water resistant, robust construction for outdoor use
20 year cell warranty and 10 year module warranty

Specifications

Power: 18watts
Peak Output: 1.21A @ 16.8V
Approx. watt-hours/day**: 126
Approx. amp-hours/day**: 8.47
Dimensions: 638 x 278 x 25mm
Weight: 2.2kg

* An inverter is required to power or charge 240Vac appliances - not included.

** Based on 7 hours of average daily peak sunlight hours

Details

Product ID: SS7247

Weight: 2.80 kg
