Geo 2 - Mains Free Solar Lighting Kit
Pay in 3 interest-free payments on purchases from £30
Related Products
Features
The Geo 2 - Mains Free Solar Lighting & Power Kit Ideal for lighting internal space up to 32 square metres will light sheds up to 16'x20' (5m x 6m)
Ideal for providing light and power to locations without mains power or where cost effective environmentally friendly power solutions are preferred.
Ideal for providing light and power to locations without mains power or where cost effective environmentally friendly power solutions are preferred.
Works in Winter
A well positioned solar panel will enable this product to work in typical UK winter conditions.
40 Watt Equivalent
Brightness is equivalent to a 40 watt incandescent bulb as you might use in the home.
No Mains
This light is solar powered and does not require mains power to work.
Up to 18 Hours Run Time
Will light for up to 18 hrs from a full charge.
- Mains equivalent lighting
- Two 40w equivalent LED bulbs
- Recommended battery provides up to 48 hours run time
- Modular kit format - add to the kit as required
- Installs in as little as 1 hour
- DIY installation - if you can wire a plug, this kit will be easy.
- No planning permission required.
- Next Generation LED Technology. 3x the performance of the 1st Generation Geo Kits
- Install it anywhere
- Free to run
- Maintenance free
Customer Reviews
By Paul on Oct 30,2023
Helpful?
0 | 0
0 | 0 By Colin on Mar 5,2021
Helpful? 0 | 0
0 | 0 By Dean on Feb 15,2021
Helpful? 4 | 0
4 | 0 By Baldownie on Jan 14,2021
Helpful? 4 | 0
4 | 0 By Brian Meaker on Dec 2,2020
Helpful? 2 | 0
2 | 0
Description
Unlike large solar panel systems that can take many years to pay for themselves, our Geo Mains Free Solar Lighting Kits deliver instant savings. Installing a lighting supply to remote locations isn't always possible and is often highly expensive when it is.Our Geo kits can be installed by anyone with basic DIY skills and are exempt from Part P of the building regulations which means there is no need to pay an electrician to have your kit installed and certified.
The Geo 2 - Mains Free Solar Lighting Kit can be used with a 12ah or greater 12v battery. It is recommended however that if you are only using a low capacity battery that you either add a charge controller to the system or disconnect it when not in regular use, to prevent overcharge.
Geo 2 Applications

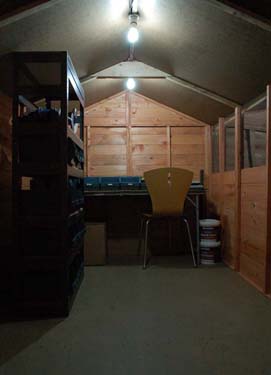

The Geo 2 will light an area of 32 square metres making it ideal for medium / large sized rooms, sheds, garages, outhouses, wendy houses, greenhouses and tree houses. As well as providing you with lighting you can use the charge stored in the battery for powering a variety of small electronic devices.
What Battery Do I Need?
You can choose a battery using the drop down selector above the Add to Basket button. If you already have a 12v battery you can use it with this kit, please note using a lower capacity then recommended will reduce the length of time the lights run for.

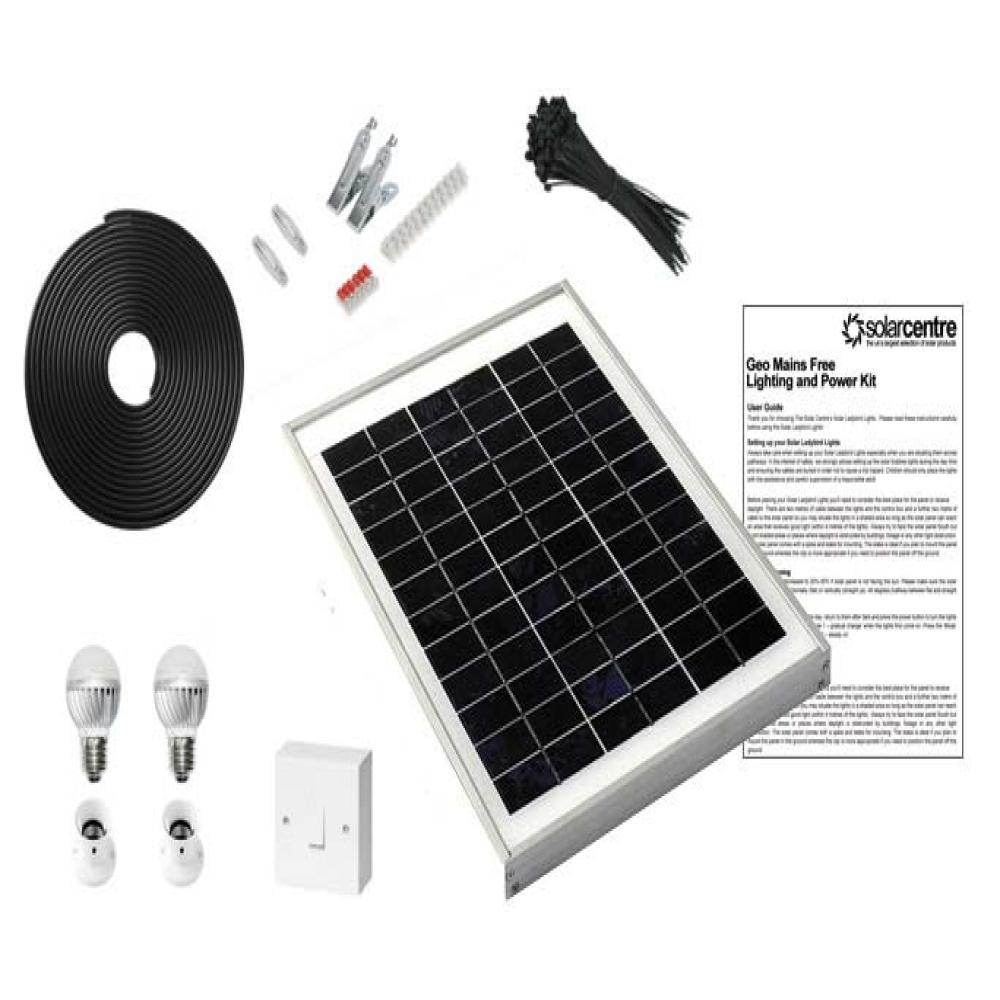

What You Get
- 1 x 10 Watt Solar Panel
- 2 x Crocodile clips
- 2 x Fuse holders
- 2 x 5a fuse
- 6 x Ring terminals
- 2 x Light bulb holder (ES/E27 Screw Fitting)
- 2 x 3w 12v LED light bulb (ES/E27 Screw Fitting)
- 1 x Light switch
- 1 x Light switch back box
- 1 x Individual connection blocks
- 4 x Screws
- 4 x Roof fixing blocks
- 1 x 10m run of cable
- 4 x Cable ties
- 8 x Cable clips
Details
| Product ID: SS9049 |
| Weight: 3.00 kg |
| Product Barcode: 5060188640752 |
Installation
Geo 2 - Mains Free Solar Lighting Kit Instructions
How it works

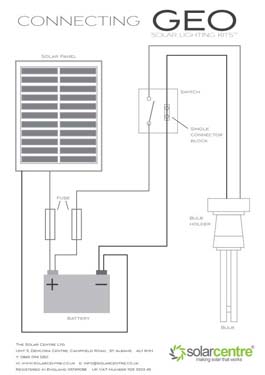

The solar panel within this kit will generate electicity from the sun, into a connected 12v battery. This battery then stores the power ready for use when required. Connected to the battery via a simple circuit are the 12v light bulbs, with a switch situated between them and the battery. Once the switch is turned on the circuit is complete and charge from the battery will power your 12v lightbulbs.Video
Frequently Asked Questions
Question:
What is the IP rating of the panel? Is it suitable to install outside on a shed roof?
By Mark Lis on Jul 5,2023
By Mark Lis on Jul 5,2023
Answer:
Hi, the panel is IP66, and can certainly be installed on top of a shed roof.
Helpful?
1 | 0
1 | 0
Question:
Hi,
Can i use this system off a standard heavy duty car battery?
Also can i run led lighting off this system?
Many thanks
By adam strudwick on Feb 19,2023
By adam strudwick on Feb 19,2023
Answer:
Yes, you can use a car battery for this. However, this will be designed for short bursts of energy. Whereas, if you buy the correct battery for the Geo kit it will work for longer periods of time. Yes, you can also run LED lighting off the system. But please make sure you are powering something that is equivalent to or less than the voltage of the battery that is used.
Helpful?
0 | 0
0 | 0
Question:
Hi I'm installing the Geo 2 now and have run out of 10m cable. What's the correct cable to purchase, what lengths are on offer and can I purchase from you? Thanks
By Brian Roberts on Nov 7,2021
By Brian Roberts on Nov 7,2021
Answer:
The longest wiring kit we do is 20m it can be found here. However if you need less than that please search TSC in the search bar and the others will come up, we have a 20m 10m or 5m.
Helpful?
1 | 0
1 | 0
